Description
SE949 Push Button Rectangular Snap Mounting is used in applications like application in general industrial equipment and home appliances.
SE949 Push Button Rectangular Snap Mounting main features are:
-
High number of Operations
-
Long life
-
Snap Mounting Arrangement
Technical Specifications:
| H.V Breakdown test | 1 KV AC For 1 Minute |
| Contact Rating | 2 A 250 V AC |
| Contact Resistance | < 10 m ohms |
| Mechanical Life (No. Of Operations) | 5,00,000 |
| Electrical Life (No. Of Operations) | 1,00,000 |
| Ambient Temperature | -25 ° C to +80 ° C |

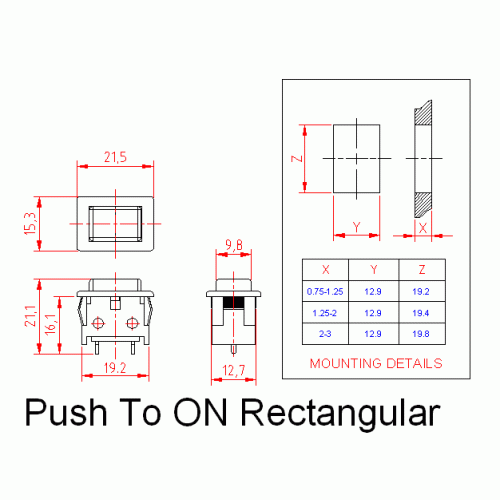

| Mounting Arrangement | Snap in Mounting |
| Housing Colors Available | Black , White |
| Button Colors Available | Black , White , Red , Yellow , Green , Blue |
| Housing Material | Polyamide 66 UL 94 V3 |
| Push Button Material | Polyamide 66 UL 94 V3 |
| Terminals Material | Brass Silver Plated |
| Terminal Type | Solder |
